Sequence

Modem- / Small equipment- / Desktop cases
Aluminium sheet / extrusion / plastic parts configuration
Internal protection up to IP54 (depending on the version)
EMC prepared and upgradable
For common Eurocard size formats
Flexible and adaptable

Customized adaptions are possible

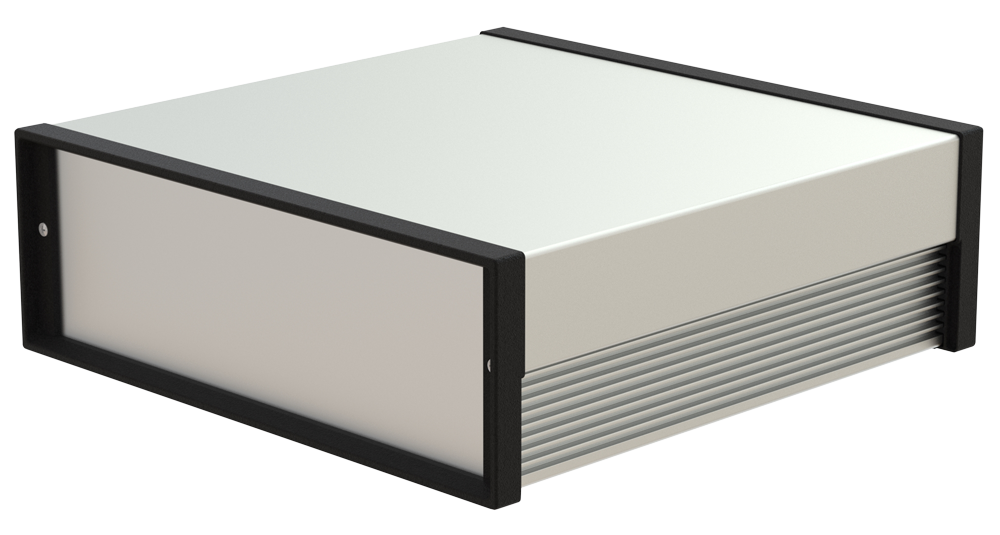

The design of the extruded case Sequence with its striking cooling fin structure is particularly appealing. The tube is designed to accommodate single or double Eurocards in multiple levels. This series is available in two basic versions. The decorative frame is available either in a solid closed or open version made of plastic. The open frame version is accompanied by an aluminium front panel. The front panels are optionaly available with a groove accepting conductive gasketing for compliance with EMC criteria and rating up to IP54.



Open 3D view in new window

DIMENSIONS

High

1, 2 U

Width

125, 172, 260 mm

Depth

185, 209, 240, 264 mm

Surface

Extruded tube aluminium anodized/cutting edges raw or powder-coated RAL 7035 (light grey) / cutting edges raw
Front-/rear bezel ABS RAL 7001 (silver grey - fire resistance rating)
Front-/rear panel with the following options: front/rear anodized, cutting edges blank, rear alodined with or without groove

Norms / Standards
