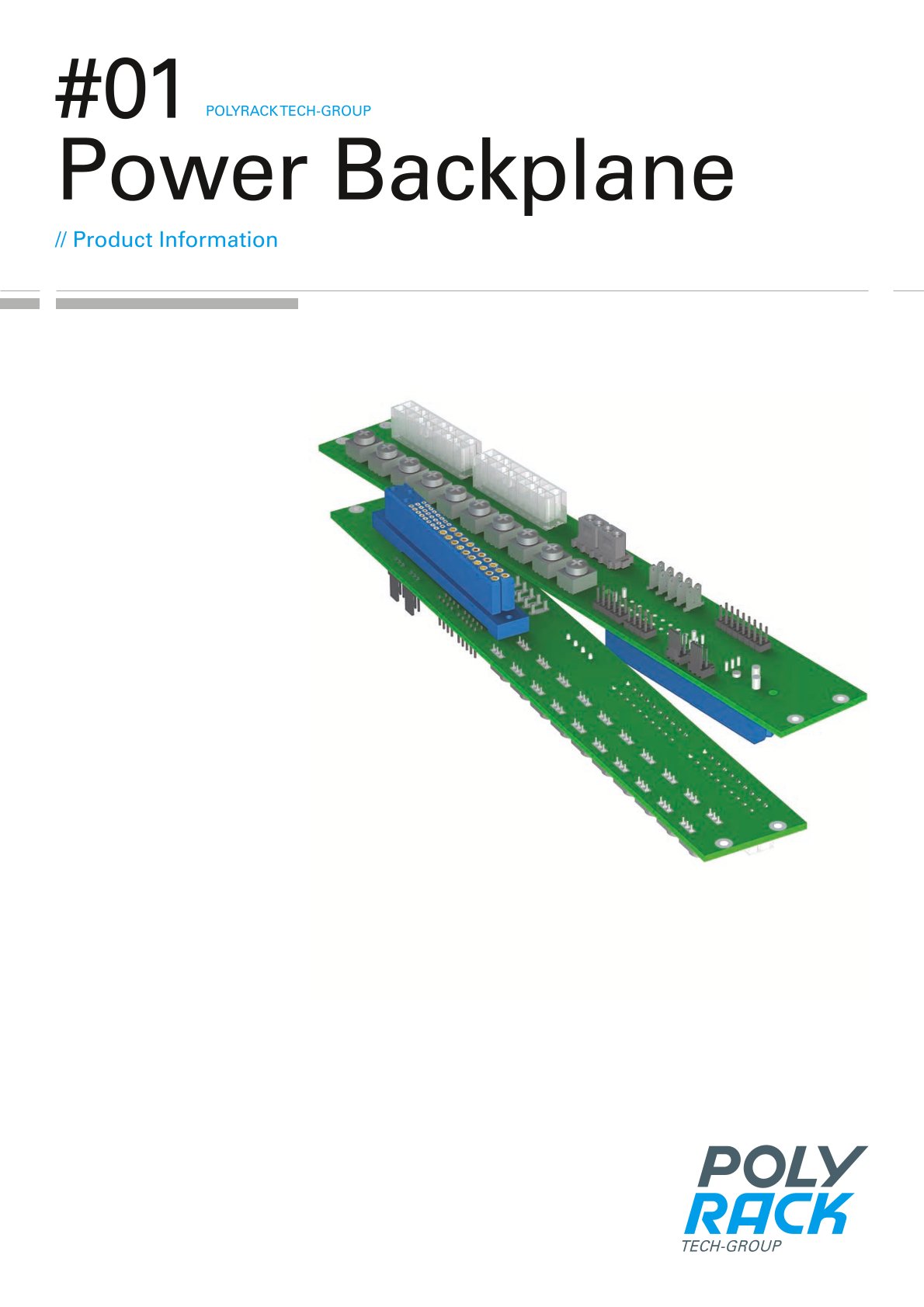

Power Backplanes

PICMG - spec.: 2.11
For integration of a plug-in power supply unit, for example in CPCI systems
Available in 3 U and 6 U
Backplane fully equipped and tested (connection / interface test)
Screw-/plug-in connectors for power input
Single and parallel operating mode possible

Customized adaptions are possible

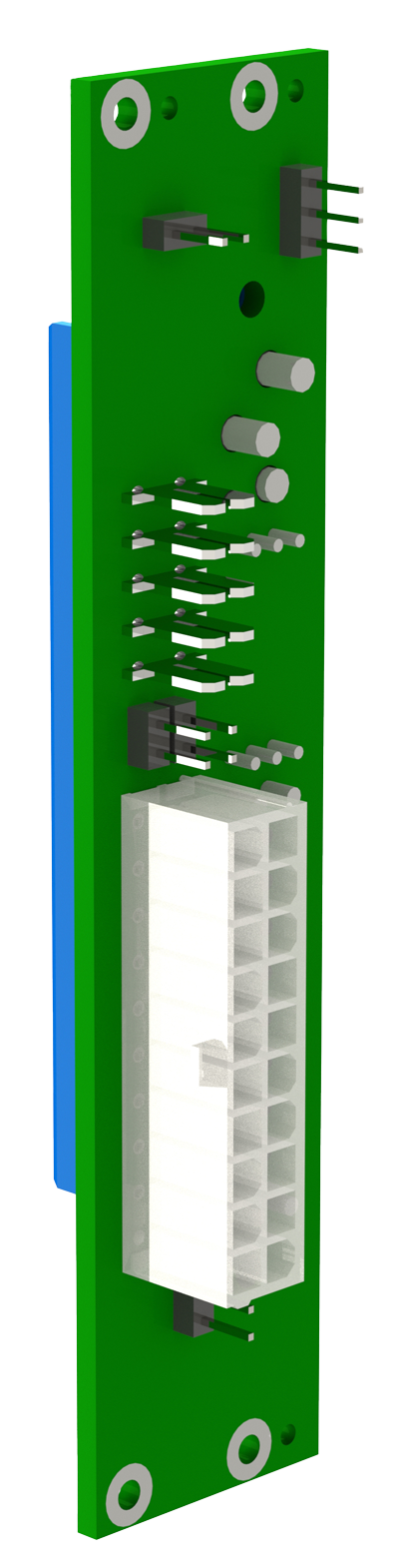

The power backplanes enable the integration of a plug-in power supply unit into a CPCI system.

Open 3D view in new window

DIMENSIONS

High

3 and 6 U

Slots

max. 1

Norms / Standards

PICMG - spec.: 2.11
Connector: class 2
Power connections M4, ATX and HDD connectors (with 6 U)

DATA SHEET

GENERAL OVERVIEW

GENERAL OVERVIEW

download portal

Download Portal folder



Complementary products

No items found.
