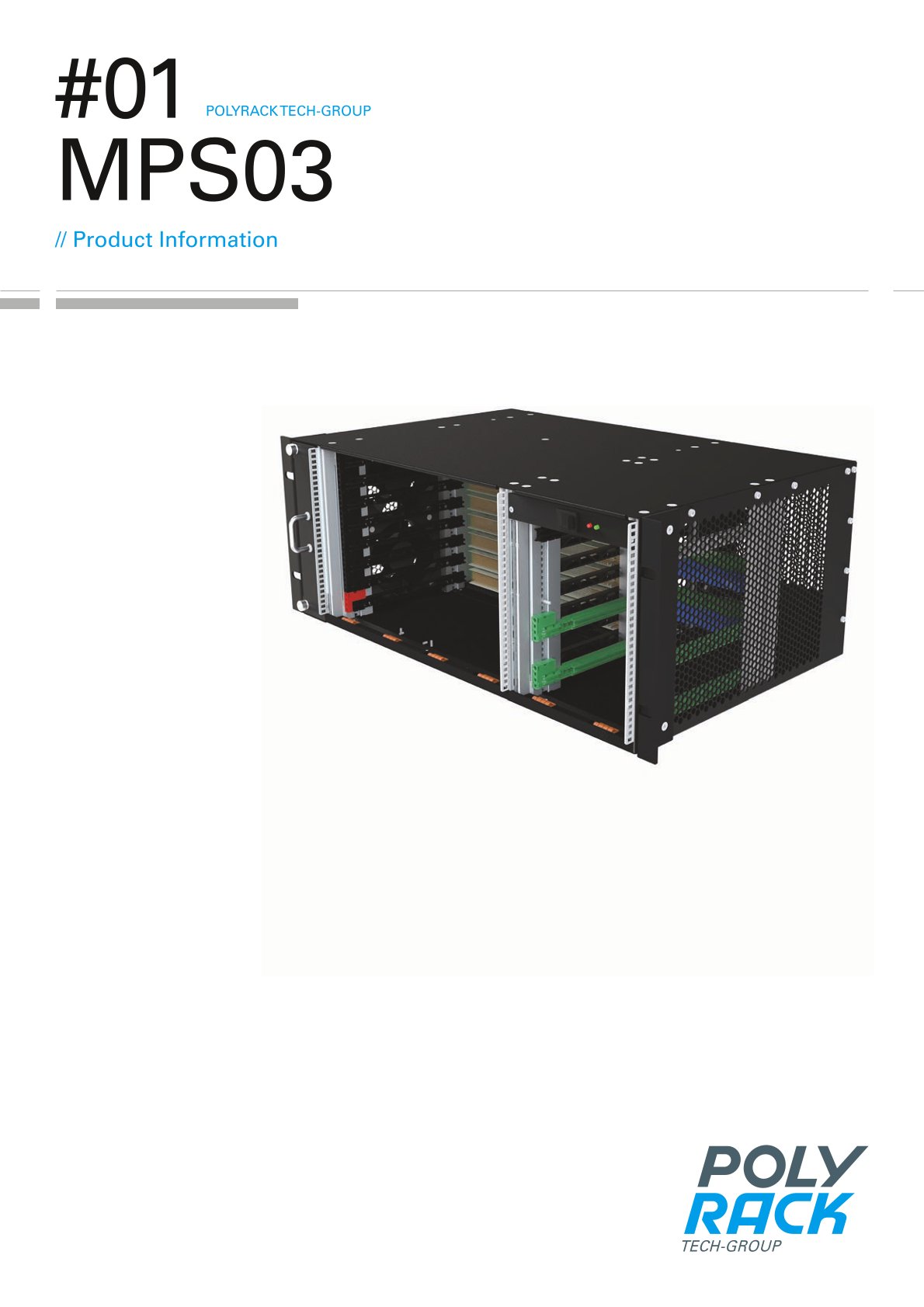

MPS03

  • Elegant, compact 19" rack system with a horizontal card cage
  • Based on the subrack series „Future“
  • Mounting with various backplanes (CPCI, VME, VME64x,..) possible
  • Horizontal card cage

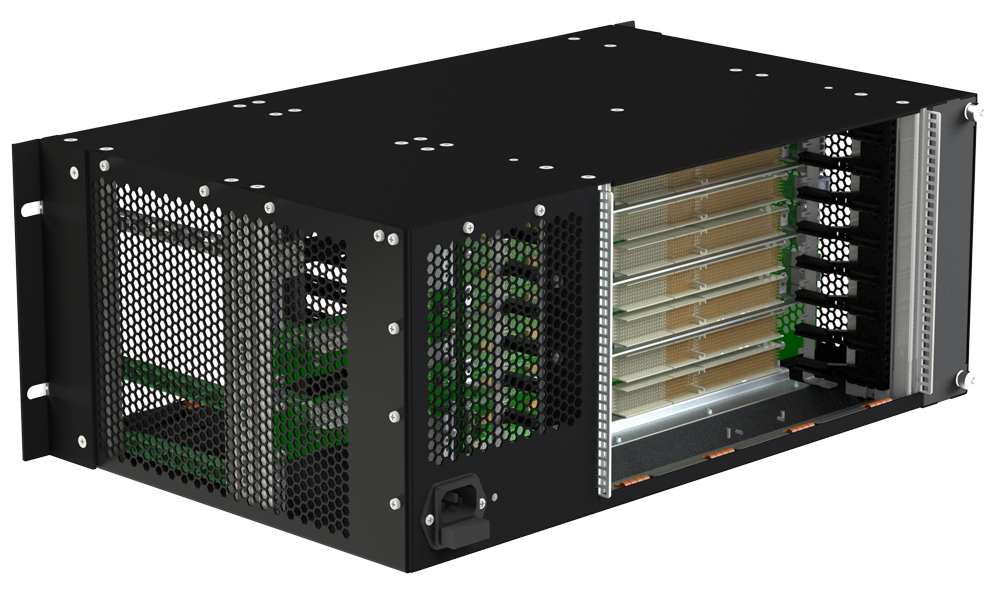

  • Rear-I/O for the mounting of printed circuit boards with a depth of 80 mm
  • Available in 1, 2, 3 and 4 U from 2 to 8 slots
  • Suitable for the mounting of an additional Rear-I/O
  • Power supply either integral (ATX 300 watts) or up to two plug-in power supplies
  • Optionally with system monitoring SMC3
  • Fully mounted and tested

Customized adaptions are possible

DESCRIPTION

3D Ansicht

Details

Download

SUPPORT REQUEST

The basic unit of the MPS03 is based on our subrack series "Future". This series lends itself to the creation of top-quality systems. The principal system components, such as backplane, power supply, wiring, etc. are already included. The power supply (max. 300 watt), fan and SMC (System Management Controller) system components are all plugable. Further assembly parts are available.

Open 3D view in new window
DIMENSIONS

High

  • 1, 2, 3, 4 U

Width

  • 84 HP

Depth

  • 281,45 mm
Slots
  • max.: 2, 4, 6, 8
Card Format
  • front: double Eurocard 233.35 x 160 mm
  • rear: double Eurocard 233.35 x 80 mm
Card Cage
  • horizontal
  • Incremented holes in accordance with IEEE-1101.10
Cooling System
  • Fan: pluggable
  • Air flow from left to right
Rear-I/O
  • 80 mm plug-in depth
Norms / Standards
  • Insulation test: in accordance with DIN EN 62368-1
  • Radio disturbance: EN 55022, class B
  • Protection class: 1
  • Overvoltage category: 2
  • Internal Protection rating: IP20
    • Surface
    • Card cage chromated
    • Bottom plate and cover are powder coated
