MPS02

  • Classic, compact 19" rack sytem for industrial applications
  • Based on the subrack series "Future"
  • Mounting with various backplanes (CPCI, VME, VME64x,..) possible

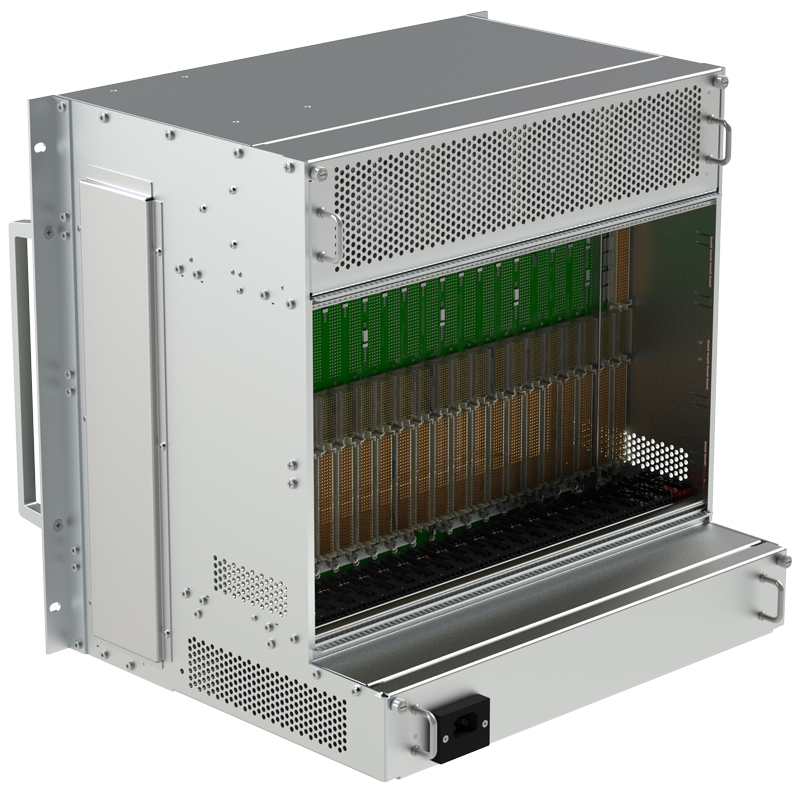

  • Rear-I/O for the mounting of printed circuit boards with a depth of 80 or 160 mm
  • Optionally upgradeable with a system-management-board
  • Plug-in power supply (up to 1000 watts) can be removed from the rear
  • Fully mounted and tested

Customized adaptions are possible

DESCRIPTION

3D Ansicht

Details

Download

SUPPORT REQUEST

The basic unit of the MPS02 is based on our subrack series "Future". This series lends itself to the creation of top-quality systems. The principal system components, such as backplane, power supply, wiring, etc. are already included. The power supply, fan and SMC (System Management Controller) system components are all pluggable. Further assembly parts are available.

Open 3D view in new window
DIMENSIONS

High

  • 10 U

Width

  • 84 HP

Depth

  • 360 mm
Slots
  • max. 21
Card Format
  • MPS02-10-1: front: double Eurocard 233.35 x 160 mm, rear: double Eurocard 233.35 x 80 mm
  • MPS02-10-2: front: double Eurocard 233.35 x 160 mm, rear: double Eurocard 233.35 x 160 mm
Card Cage
  • Vertical
  • Incremented holes in accordance with IEEE-1101.10
Cooling System
  • Fan: integral
  • Airflow front to rear
Rear-I/O

Depth

  • MPS02-10-1 = 80 mm plug-in depth
  • MPS02-10-2 = 160 mm plug-in depth
Norms / Standards
  • Insulation test: in accordance with DIN EN 62368-1
  • Radio disturbance: EN 55022, class B
  • Protection class: 1
  • Overvoltage category: 2
  • Internal Protection rating: IP20
Surface
  • Alodined
  • Front panels: front anodized / rear alodined
  • Further surface finishing options available on request

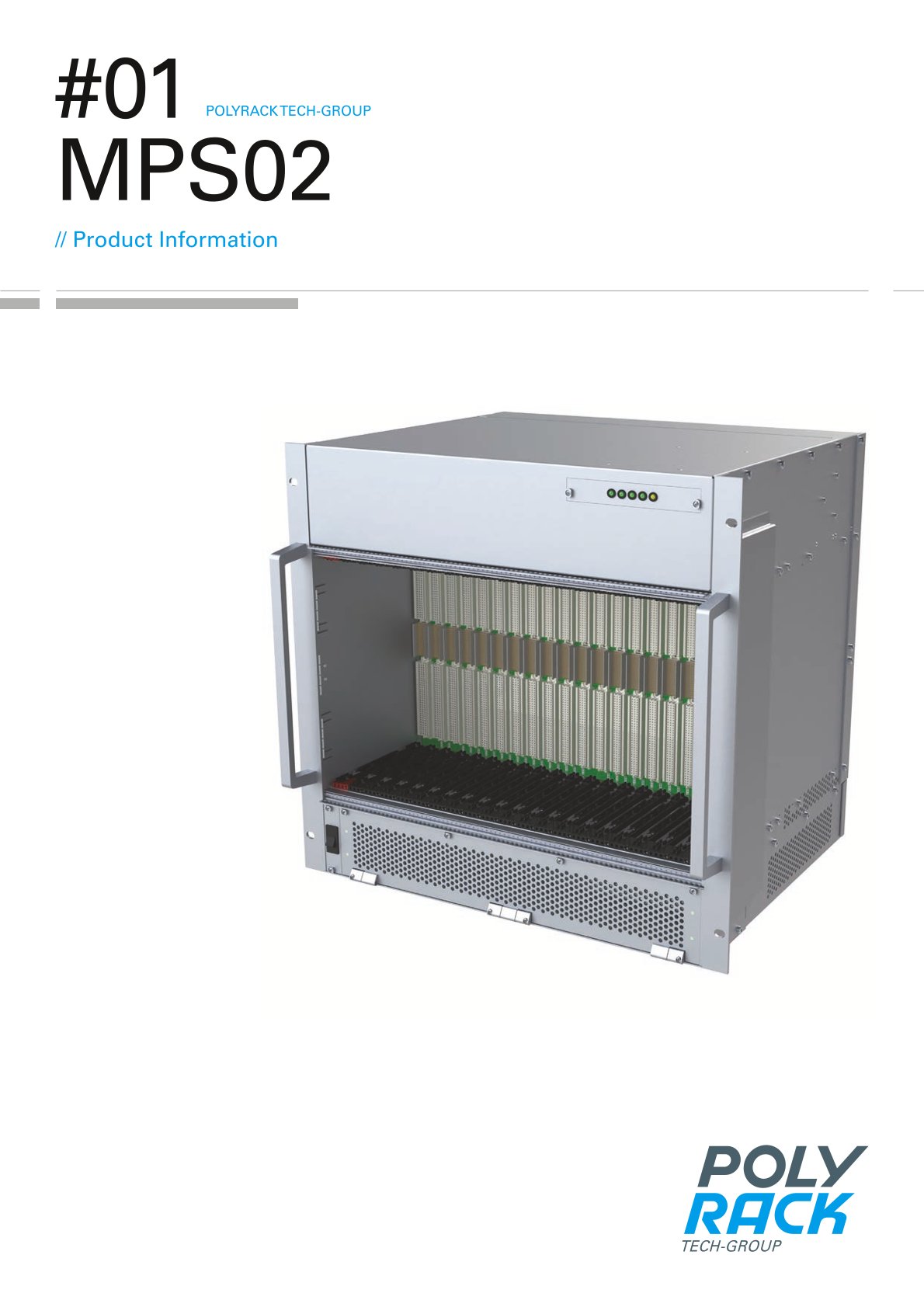

DATA SHEET
